Vertical Granule Packing Machine

Automatic salt packing machine

Hits:532

Published date:05-20-2024

Summary:This packing unit consists of one vertical packing machine for bagging ,one set cup filler for weighing , one screw elevator for feeding , one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of granules,like salt,rice,etc. Its adjustment , operation and maintenance are very convenient.

  • Product Description
  •

    Introduction:

    This packing unit consists of one vertical packing machine for bagging ,one set cup filler for weighing , one screw elevator for feeding , one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching,  cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of granules,like salt,rice,etc. Its adjustment , operation and maintenance are very convenient.

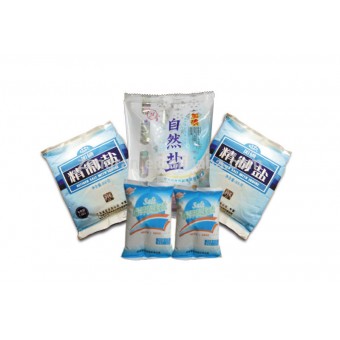

    Application:

    Advantages:

    Cup filler

    This machine is for salt weighing and filling. Including hopper,rotation panel with cups, cup volume adjustment device and frame etc. The contact parts be made by 316S.S and the frame be made by 304 S.S.



    China main 3 Phase motor for filling;

    Separate motor Hopper agitator to prevent salt block inside the hopper;

    Siemens control for cup filling;

    Schneider electronics;

    Dust extraction connection can be choose.

    The cup volume can be adjust 20% up and down

    Vertical packing machine

    This machine own functions of bag-making,sealing,date printing,cutting,etc.



    Adopts Siemens PLC & Touch ScreenPANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.

    Can be used for making pillow bag,gusset bag,hole-punching bag, box type bag,etc.

    Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

    Automatically form and make a bag by using roll film

    With independent touch screen for seting parameters



    Technical parameters:

    Packing machine

    Weighing

    machine

    Bag type/

    Bag Material

    Max Roll Film width

    Bag size:(mm)

    Max speed

    BPM

    ZD420

    Cup filler

    Pillow bag,gusset bag,hole punching bag/LDPE film,

    Laminated

    film

    420mm

    W(80-200)*L(80-200)

    50BPM

    ZD520

    540mm

    W(120-260)*L(80-250)

    40BPM





















    Our service:

    Packing&shipping

    1.Film wrapped&wooden case packed.

    2.We will delivery machine from any sea port in China

    Installation:

    1.    We provide videos and instruction manual to show the process of installation.

    2.    We provide training for installation for free in our factory.

    3.    We can send technician to buyer's factory to install the machine and provide training service.

    After sales service:

    1.    One year quality warranty and free lifetime technique support.

    2.    Free spare parts would be supplied if machine broken within warranty period.
